Residual Current Circuit Breaker Auto Recloser RCCB EBS2LST

180.0 Pieces
MOQ

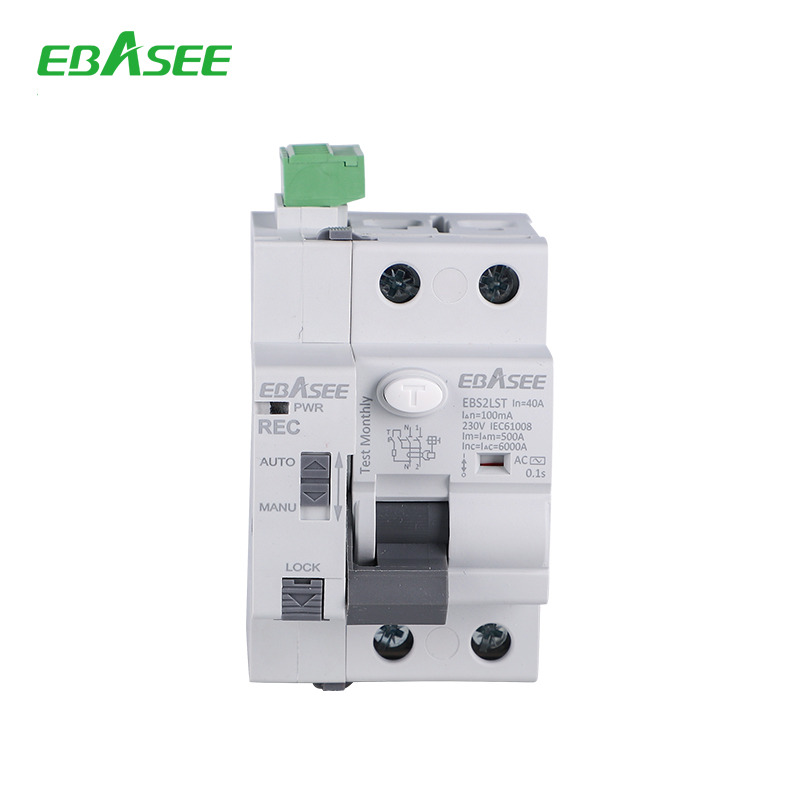

Residual Current Circuit Breaker Auto Recloser RCCB EBS2LST
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Model Number: EBS2LST
Name: Automatic Recloser RCCB
Rated voltage: AC 220V
Rated current In(A): 16,20,25,32,40,50,63
Residual current(A): 10,30,100,300,500
Pole: 2,4 Pole
Residual trip type: type:C,AC,A,S
Power terminals: A1-A2
Voltage: AC 220V(50-60HZ)
Automatic times: 3 times
Recloser time relay: 10S-60S-300S
Type: Residual Current
Poles Number: 2,4
Grundinformation
Model Number: EBS2LST
Zahlung und Versand AGB
Packaging Details: 1. Tehow Standard mcb export packing. 2. 180pcs for a standarde miniature circuit breaker export packing box.
Supply Ability: 100000 Piece/Pieces per Month miniature circuit breaker
Produkt-Beschreibung
Products Description
Function:
1. Provides protection against earth fault/leakage current and function of isolation
2.High short-circuit current withstand capacity3.Application to terminal and Pin/U type busbar connection
4.ON/OFF display function of contact position
5.Fire resistant plastic parts endures abnormal heating and strong impact
6.Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity.
EBS2LST
Control method
Digital input control and automatic recloser
Power terminals
A1-A2
Voltage fuctuation range
AC 220V (50-60Hz)
Power consumption
AC max.1VA(standby) max.20VA(Working)
indicator light
Red and green LED
Action time
s0.1S
Automatic tipping times
3 times
Reclose time delay
10S-60S -300S
Clearing times after closing
No more tips or clears within
15 minutes of successful closing
Mechanical life
10000
Electrical life
4000
Working temperature
-20C to +50C(-4°Fto 131*F)
Installation
Din rail EN/IEC60715
Protection class
IP20
